GUIDE - Face Mini Freestanding Dismantlement

Go Back button.png



Dismantlement



Step 1.

Insert key and turn to unlock. Once unlocked, remove the face plate from the enclosure.



Step 2.

Unplug the charger from the device.



Step 3.

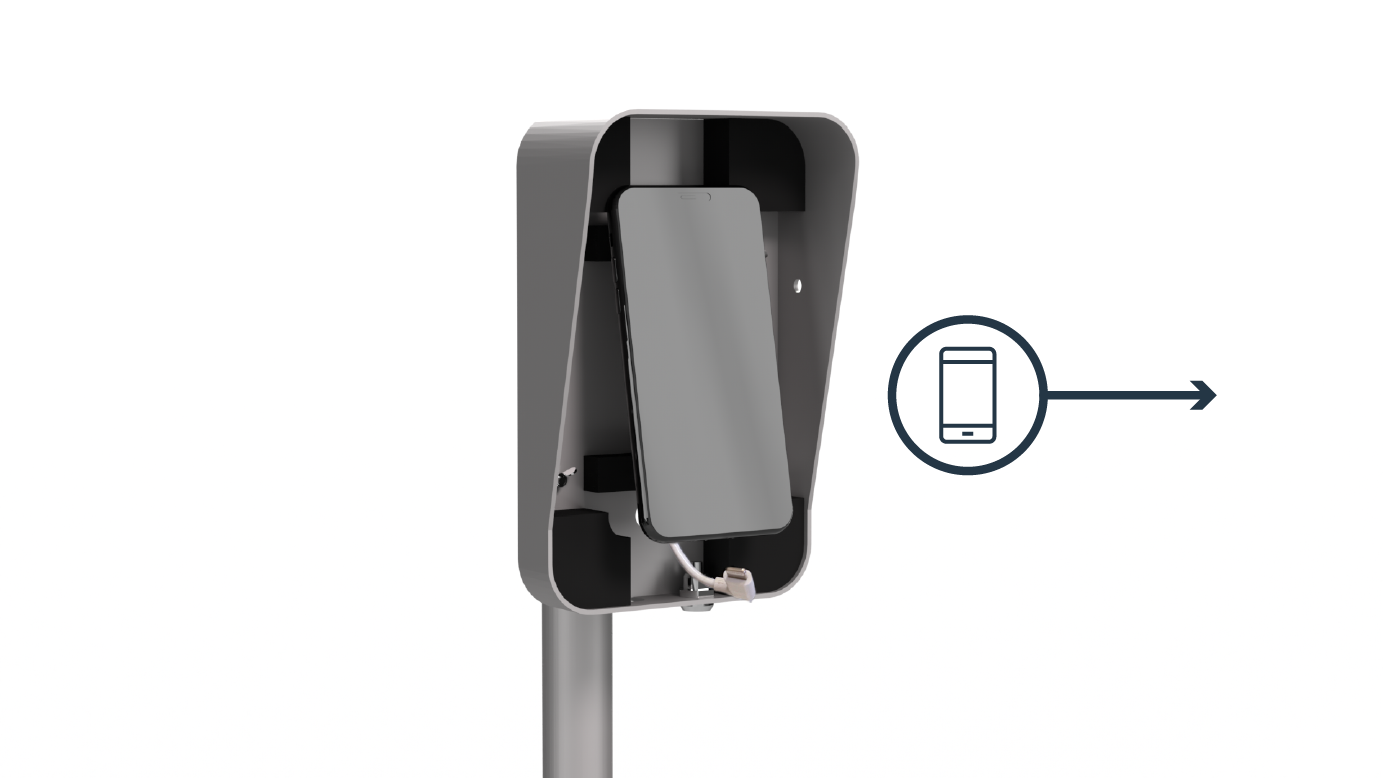

Remove the device from the enclosure.



Step 4.

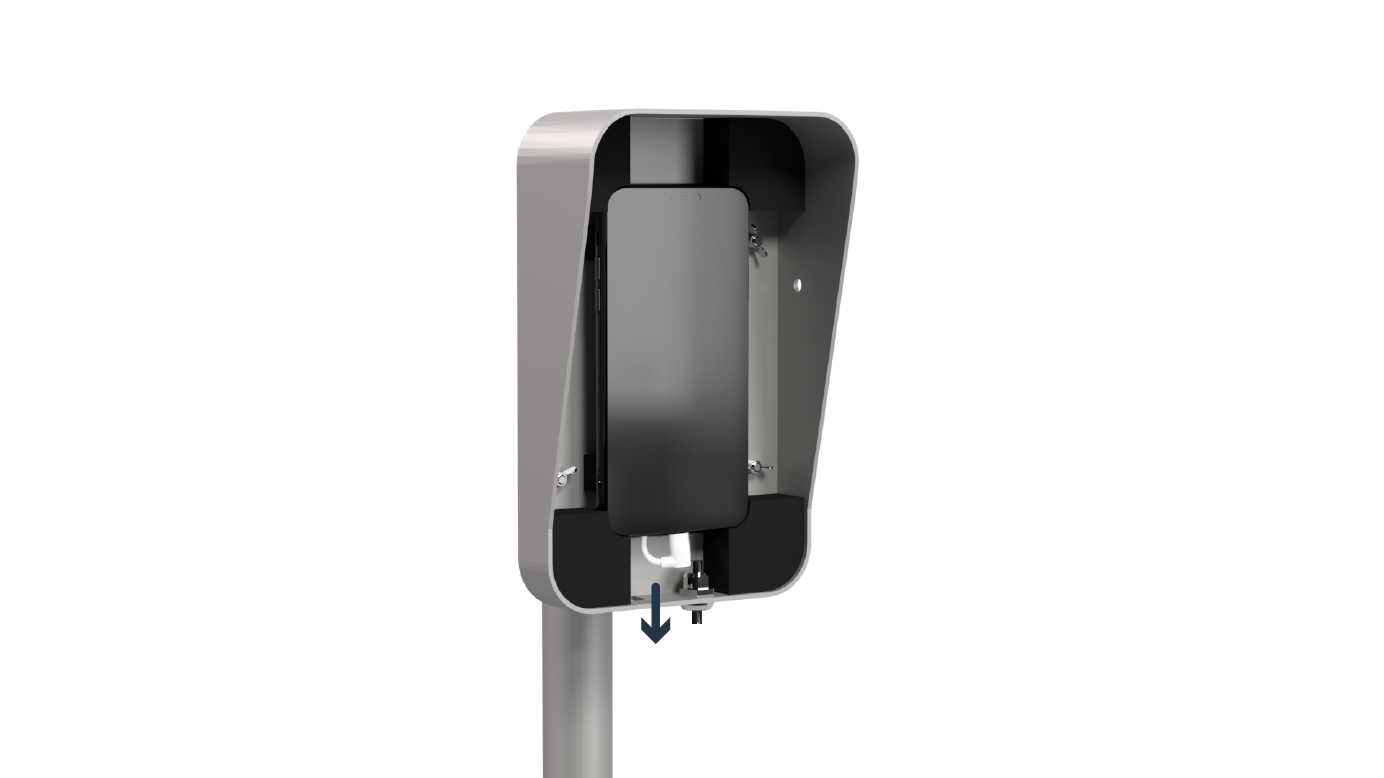

Pull/feed the charging cable back through the stand.



Step 5.

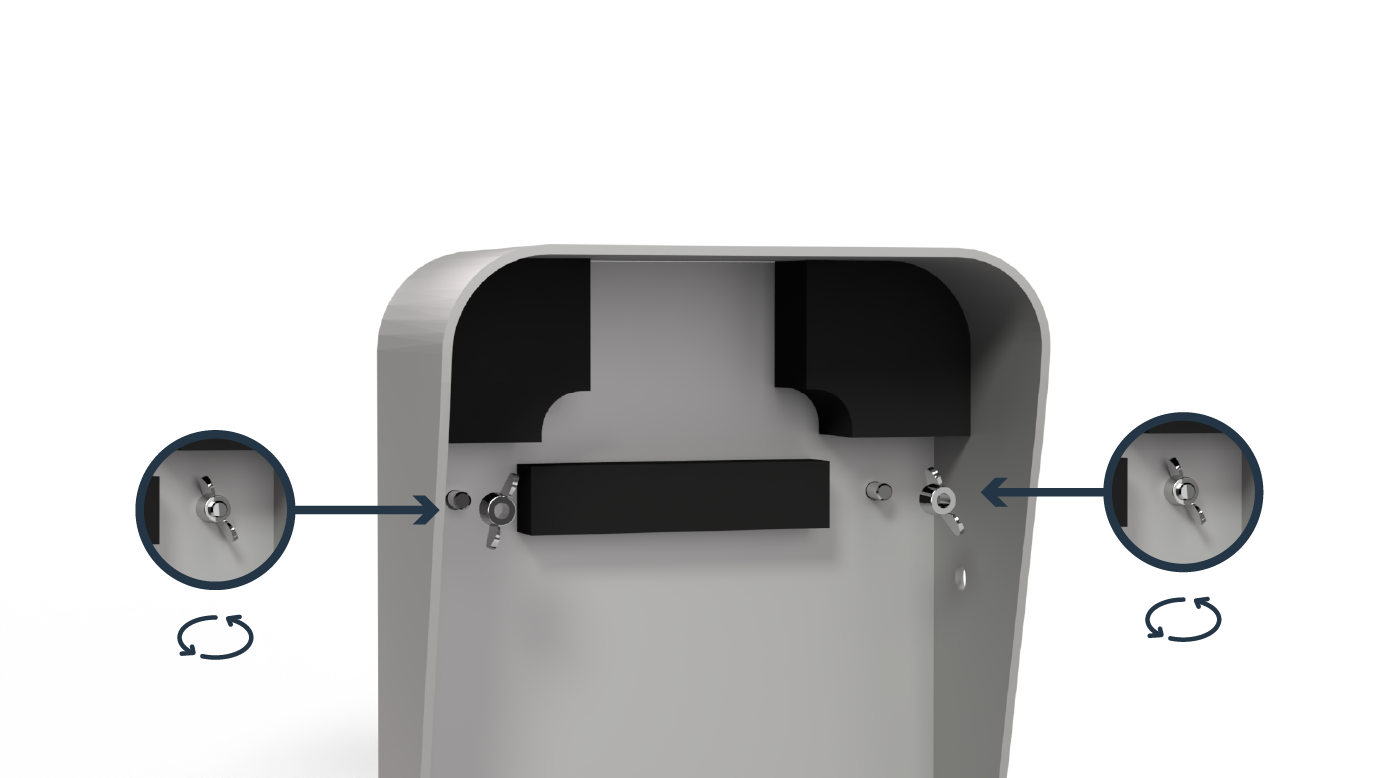

Unscrew the bottom two wingnuts, use security allen key provided if needed.





Step 6.

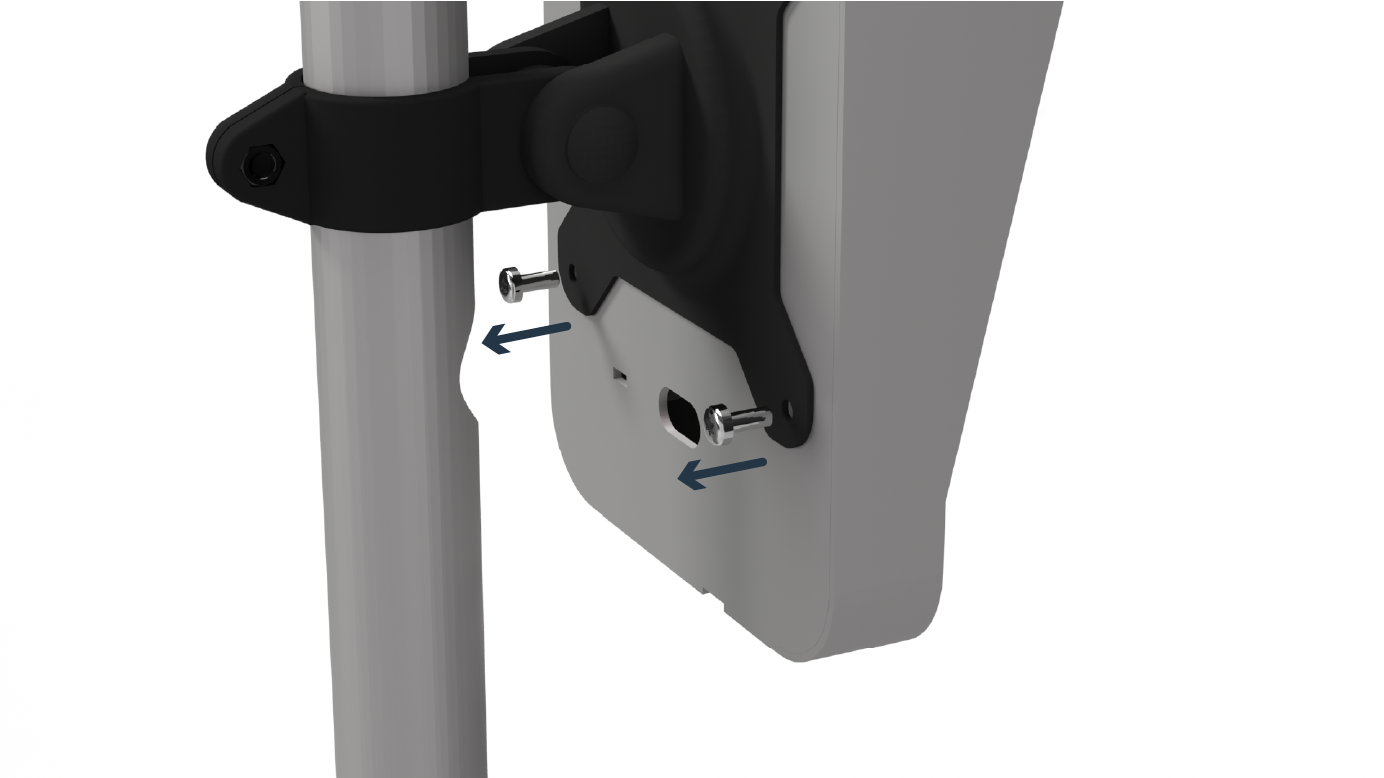

Remove the bottom two screws from the bracket.



Disassembly_6 @3x.png


Step 7.

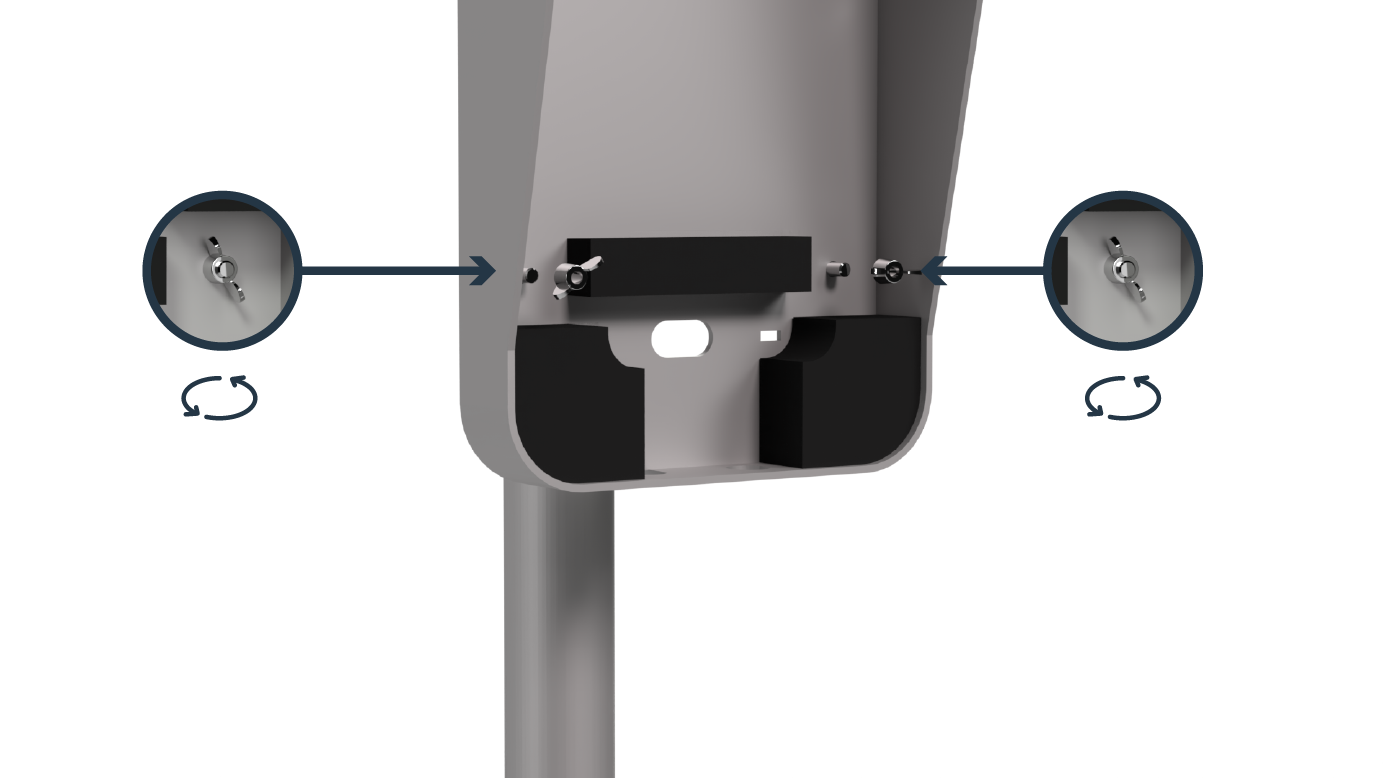

Loosen the top two wingnuts, but do not remove them.





Step 8.

Lift the device enclosure off the bracket.
